Package org.apache.clusterbr.zupportl5.processor

Class DiagramGeneratorBase

java.lang.Object

org.apache.clusterbr.zupportl5.processor.DiagramGeneratorBase

Direct Known Subclasses:

ActivityDiagramGenerator, ClassDiagramGenerator, SequenceDiagramGenerator, StaticDiagramGenerator, UCDiagramGenerator

public abstract class DiagramGeneratorBase
extends Object

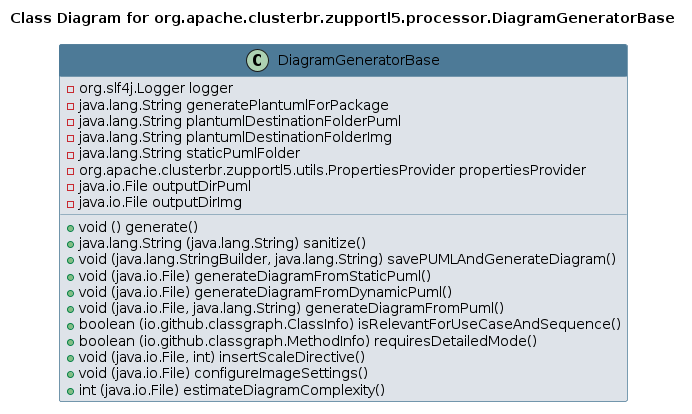

UML Diagrams:

Since:

2024-1108

Author:

arcbrth@gmail.com

Field Summary

Fields

Modifier and Type	Field	Description
protected String	generatePlantumlForPackage
protected static final org.slf4j.Logger	logger
protected File	outputDirImg
protected File	outputDirPuml
protected String	plantumlDestinationFolderImg
protected String	plantumlDestinationFolderPuml
protected PropertiesProvider	propertiesProvider
protected String	staticPumlFolder

Constructor Summary

Constructors

Constructor	Description
DiagramGeneratorBase()

Method Summary

Modifier and Type	Method	Description
abstract void	generate()
protected void	generateDiagramFromDynamicPuml(File pumlFile)
protected void	generateDiagramFromStaticPuml(File pumlFile)
protected boolean	isRelevantForUseCaseAndSequence(io.github.classgraph.ClassInfo classInfo)
protected boolean	requiresDetailedMode(io.github.classgraph.MethodInfo method)
protected String	sanitize(String input)
protected void	savePUMLAndGenerateDiagram(StringBuilder plantUML, String diagramFileName)

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Details

logger

protected static final org.slf4j.Logger logger

generatePlantumlForPackage

protected String generatePlantumlForPackage

plantumlDestinationFolderPuml

protected String plantumlDestinationFolderPuml

plantumlDestinationFolderImg

protected String plantumlDestinationFolderImg

staticPumlFolder

protected String staticPumlFolder

propertiesProvider

protected PropertiesProvider propertiesProvider

outputDirPuml

protected File outputDirPuml

outputDirImg

protected File outputDirImg

Constructor Details

DiagramGeneratorBase

public DiagramGeneratorBase()

Method Details

generate

public abstract void generate()

sanitize

protected String sanitize(String input)

savePUMLAndGenerateDiagram

protected void savePUMLAndGenerateDiagram(StringBuilder plantUML,
 String diagramFileName)

generateDiagramFromStaticPuml

protected void generateDiagramFromStaticPuml(File pumlFile)

generateDiagramFromDynamicPuml

protected void generateDiagramFromDynamicPuml(File pumlFile)

isRelevantForUseCaseAndSequence

protected boolean isRelevantForUseCaseAndSequence(io.github.classgraph.ClassInfo classInfo)

requiresDetailedMode

protected boolean requiresDetailedMode(io.github.classgraph.MethodInfo method)
