Package org.apache.clusterbr.zupportl5.processor

Class ActivityDiagramGenerator

java.lang.Object

org.apache.clusterbr.zupportl5.processor.DiagramGeneratorBase

org.apache.clusterbr.zupportl5.processor.ActivityDiagramGenerator

public class ActivityDiagramGenerator
extends DiagramGeneratorBase

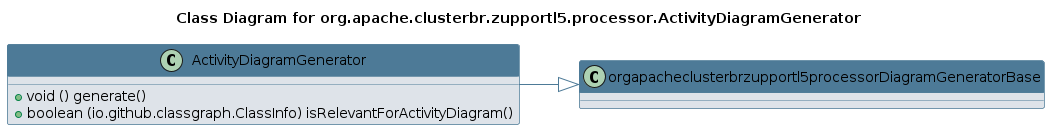

UML Diagrams:

Since:

2024-1106

Author:

ArBR

Field Summary

Fields inherited from class org.apache.clusterbr.zupportl5.processor.DiagramGeneratorBase

generatePlantumlForPackage, logger, outputDirImg, outputDirPuml, plantumlDestinationFolderImg, plantumlDestinationFolderPuml, propertiesProvider, staticPumlFolder

Constructor Summary

Constructors

Constructor	Description
ActivityDiagramGenerator()

Method Summary

Modifier and Type	Method	Description
void	generate()

Methods inherited from class org.apache.clusterbr.zupportl5.processor.DiagramGeneratorBase

generateDiagramFromDynamicPuml, generateDiagramFromStaticPuml, isRelevantForUseCaseAndSequence, requiresDetailedMode, sanitize, savePUMLAndGenerateDiagram

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Details

ActivityDiagramGenerator

public ActivityDiagramGenerator()

Method Details

generate

public void generate()

Specified by:

generate in class DiagramGeneratorBase
