Package org.apache.clusterbr.zupportl5.processor

Class ClassDiagramGenerator

java.lang.Object

org.apache.clusterbr.zupportl5.processor.DiagramGeneratorBase

org.apache.clusterbr.zupportl5.processor.ClassDiagramGenerator

public class ClassDiagramGenerator
extends DiagramGeneratorBase

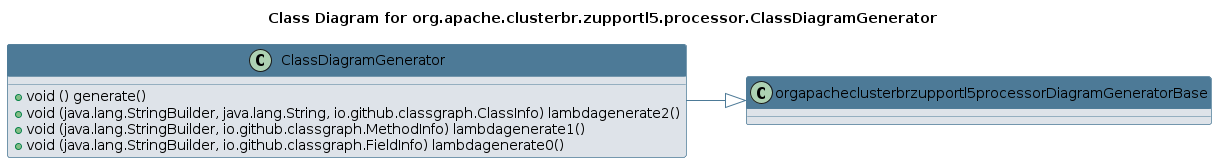

UML Diagrams:

Since:

2024-1108

Author:

arcbrth@gmail.com

Field Summary

Fields inherited from class org.apache.clusterbr.zupportl5.processor.DiagramGeneratorBase

generatePlantumlForPackage, logger, outputDirImg, outputDirPuml, plantumlDestinationFolderImg, plantumlDestinationFolderPuml, propertiesProvider, staticPumlFolder

Constructor Summary

Constructors

Constructor	Description
ClassDiagramGenerator()

Method Summary

Modifier and Type	Method	Description
void	generate()

Methods inherited from class org.apache.clusterbr.zupportl5.processor.DiagramGeneratorBase

generateDiagramFromDynamicPuml, generateDiagramFromStaticPuml, isRelevantForUseCaseAndSequence, requiresDetailedMode, sanitize, savePUMLAndGenerateDiagram

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Details

ClassDiagramGenerator

public ClassDiagramGenerator()

Method Details

generate

public void generate()

Specified by:

generate in class DiagramGeneratorBase
